CS440 Or S4800 Equivalent Cone Crusher For Granite Quarry

Name: CS440 Or S4800 Equivalent Cone Crusher For Granite Quarry
Brand: White Lai
Price: 1 USD

Quality CS440 Or S4800 Equivalent Cone Crusher For Granite Quarry wholesale

Brand Name : White Lai

Model Number : WS1440

Certification : CE, ISO

Place of Origin : Shanghai, China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 50 set per month

Delivery Time : 20 work days

Packaging Details : Export standard

Condition : New

Warranty : 5 year ( excluding wearing parts)

Color : iron grey

Weraring parts : concave liner, mantle liner, copper bushing etc.

Power : 220 kw

Lubrication : Thin Oil (Mobil Gear 626)

Weight : 19300 kgs

Bearing brand : SKF

Contact Now

CS440 Or S4800 Equivalent Cone Crusher For Granite Quarry

One complete set of CS440 machine includes:

Main unit, motor, motor chasis, lubrication & hydraulic station, electric control panel (ASRi)

Basic Info:

Model: CS440

Weight: 19300 kg

Max. feed size: 450 mm

Motor power: 220 kw

No. Of chambers: EC/ C/ MC

Specs:

MODEL	Motor	Chamber	Max.feed size	Capacity (tph) of different discharge opening size (mm)
MODEL	kw	Chamber	mm	29	32	35	38	41	44	48	51	54
WS1440	220	EC	450			273-318	285-434	297-452	309-470	325-495	337-447	349-406
		C	400		291	304-463	317-483	331-503	344-456	362-421	375
		MC	300	245	257-391	269-409	281-427	292-445	304-403	320-372	332

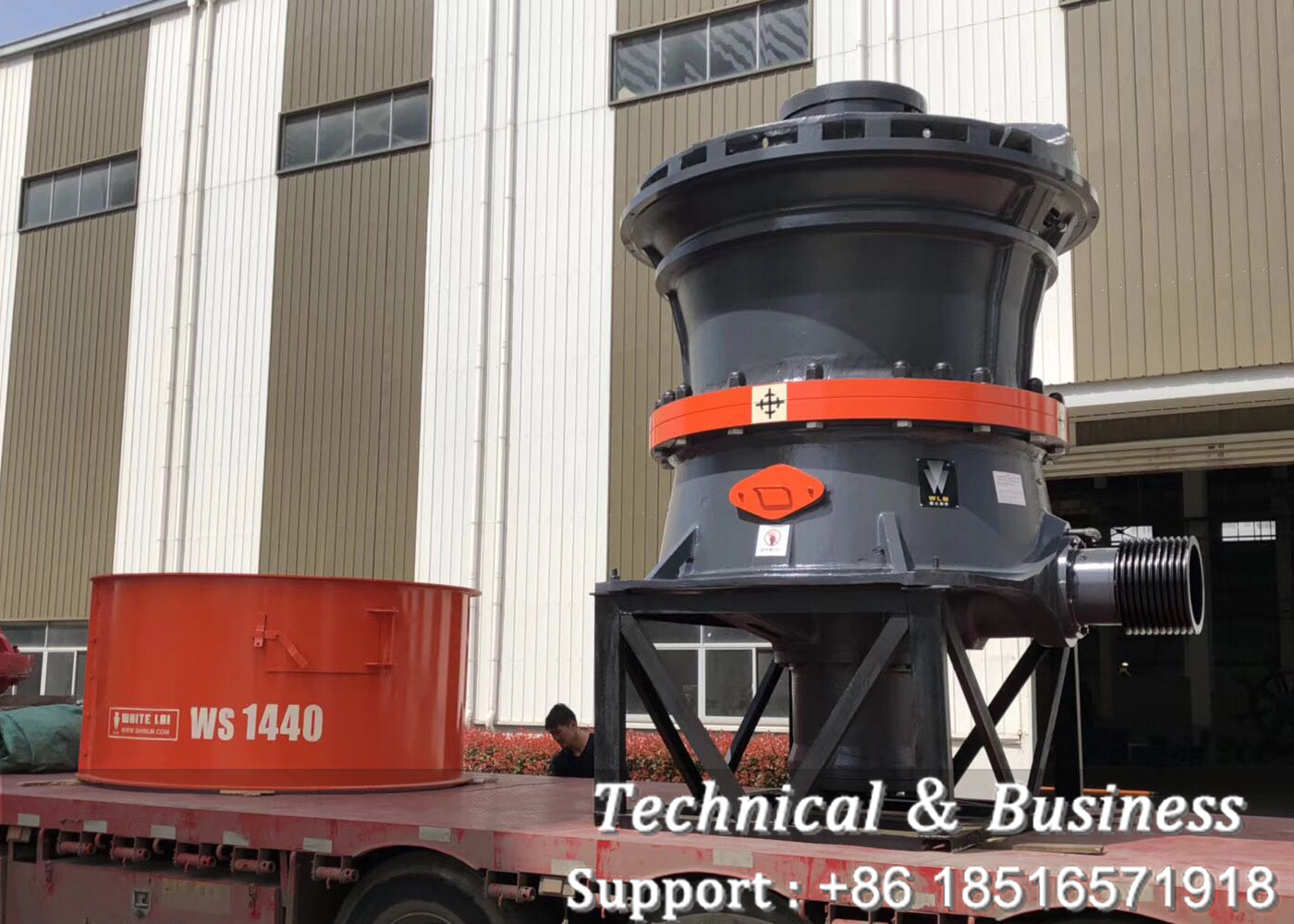

Delivery:

CS440 Or S4800 Equivalent Cone Crusher For Granite Quarry

Guarantee and After-sales Service:
1- One years guarantee for main machine, excluding wearing parts
2- Experienced technicians and guidance are available
3- 24 hours technical support by e-mail, by phone.
4- Use-friendly English user manual
5- Engineers could be dispatched to the quarry site, if requested by customer.

Product Tags:

sand cone crusher

short head cone crusher

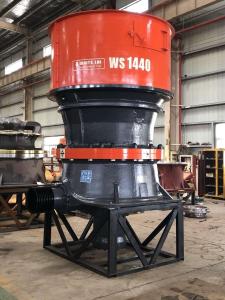

CS440 Or S4800 Equivalent Cone Crusher For Granite Quarry Images
